CX-1510

ホーム>HOME>Products>Constant Flow Valves>CX-1510
Flow Measurement
Constant Flow Valves
Constant Flow Valves

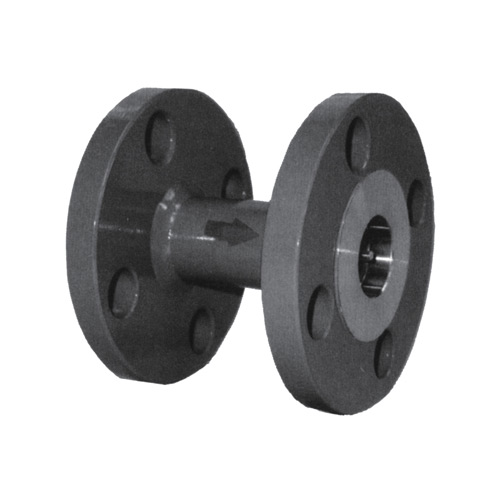

CX-1510 FLOW SET VALVE is a constant flow valve for liquids of water or equivalent for water.
Even inlet or outlet pressure of process changes, CX-1510 maintains constant flow of liquid.
CX-1510 is suitable for the stable supply of the water supply line of various facilities.

Catalogs and Brochures

*Specifications are subject to change without prior notice.

Specifications

Measuring medium Water or Low viscosity liquids
Nominal diameter 15mm to 100mm
Flow range Max. 22 to 30m³/h (nor)
Min. 0.7 to 1.1m³/h (nor)
Fluid Temperature Max. 100°C
Fluid Pressure 1.2MPa max.
Process Connection Rc thread, NPT thread, JIS10K Flange
Accracy ±5% (Against set value)
