Super DIR-M3200/M8000

Level Measurement

Marine Use Tank Gauging Systems

Instruments for control room

The multi monitor can be mixture connection SPT-3500N type tank gauge and each level, temperature and pressure sensor of 4-20mA output sensors.

Catalogs and Brochures

• Super DIR-M3200/M8000

  Download

*Specifications are subject to change without prior notice.

Features

• Improvement of expression ability by adoption color LCD display and on all tank data display.
• Using fixed software corresponding to all tankers. Accordingly I realized ministry space / ministry cost.

Specification of Super DIR-M3200

• Maximum input sensor: 32 sets
  a) 16 sets SPT-3500N + 16sets 4-20mA sensors
  b) 32 sets SPT-3500N or 4-20mA sensors
• Using color LCD display with touch panel
• All in one monitoring system equipment
• Same size for replacement of DIR-M1600

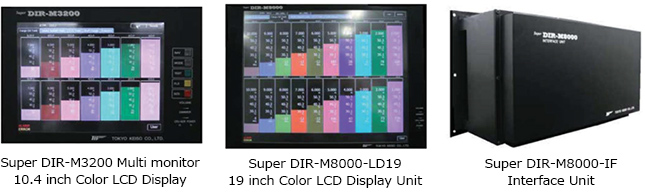

Specification of Super DIR-M8000

• Maximum input sensor: 80 sets
  (32 sets SPT-3500N + 48 sets 4-20mA sensors)
• Separate an interface unit and color LCD display unit
• Using 2 size color LCD display with touch panel
  (10.4 inch and 19 inch / Mixture connection)
