VFM4200

Flow Measurement
Vortex Flowmeters
Vortex Flowmeters

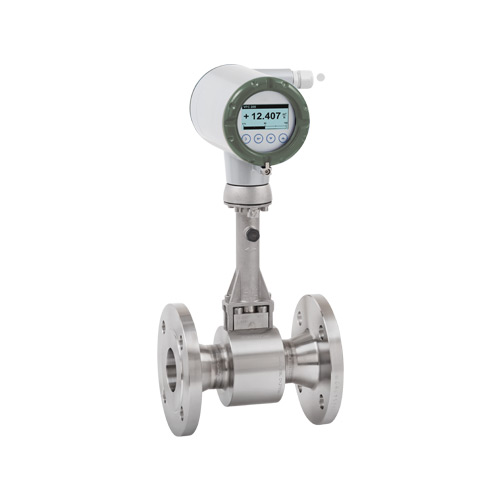

SWIRLMAX is a 2-wire, all-in-one type vortex flowmeter with temperature and pressure sensors. The VFM4200 can easily correct flow measurements of steam and gases for temperature and pressure. There is no need for additional sensors and correctors. The VFM4200 is ideal for managing the energy of steam and gases.

Catalogs and Brochures

*Specifications are subject to change without prior notice.

Features

  • Steam, gases, and liquids
  • Flow correction for saturated steam by temperature as standard The VFM4200 contains a temperature sensor and stores a table of saturated steam density in the amplifier.
  • Corrosion-resistant all-stainless-steel construction
  • Robust, maintenance-free construction with no moving parts
  • Optional pressure sensor

Specifications

Measured fluid Gas, steam, and liquid
Nominal diameter (Flange type) 15 to 300mm
(Wafer) 15 to 100mm
Flow range
· Water
(20℃) : Min. 0.46m3/h to Max. 1,772m3/h
· Air
(0℃/0MPa) : Min. 6.1m3/h(nor) to Max. 20,250m3/h(nor)
(0℃/2.0MPa) : Min. 45.6m3/h(nor) to Max. 20,2355m3/h(nor)
· Saturated steam
(0.1MPa) : Min. 5.9kg/h to Max. 22,996kg/h
(2.0MPa) : Min. 22.9kg/h to Max. 158,512kg/h
Fluid Temperature -40 to +240℃
Fluid Pressure 10 MPa max.
Process Connection Flange or wafer (inserted between pipe flanges)
Accuracy
·Re ≧ 20,000 :
±0.75% of reading (liquid)
±1% of reading (gas and steam)
·10,000 < Re < 20,000 :
±2% of reading
(liquid,gas, and steam)
